MCTRL300 LED Controller

2HANDGEAR

MCTRL300 er NovaStars controller fra M3-serien og understøtter lyd- og videoinput. M3 udfører kodning og databehandling og sender lyd og video til skærmen. Et enkelt kort understøtter maksimal  2048×668@60Hz. Den kommunikerer med pc via USB-port

DVI video indgang
Lydtransmission
Dual-Ethernet-udgang, med dobbelt-Ethernet-kabel hot backup og multiple controller backup
USB-port kontrol, til kaskade og kontrol af flere enheder
1,3 millioner pixel kapacitet, med opløsninger på 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz og 3840 Maksimal højde px

1 lyssensor interface, juster skærmens lysstyrke automatisk

Certificeringer: CE, RoHS, EAC, FCC, IC

DKK 1.785,00

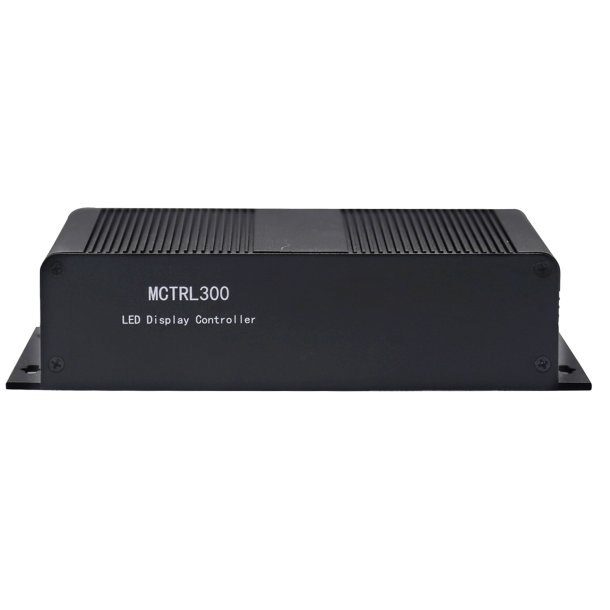

Product picture

Beskrivelse

MCTRL300 LED Controller

  • 1 × DVI input
  • 1 × audio input
  • 1 × type-B USB control port
  • UART control ports to cascade devices for uniform control.
  • Dual Ethernet outputs.
  • Supports the new generation of NovaStar calibration technology, which is fast and efficient.
  • 1 × light sensor connector.
  • Supports resolutions up to 2048×668@60Hz and downward compatibility.
  • Supports a variety of video formats.

Connector

Connector Name

Description

Input

DVI IN
  • Single-link DVI connector
  • Resolution up to 1920×1200@60Hz and downward compatible
  • Custom resolutions supported:
    • Resolution with maximum width: 3840×600@60Hz Resolution with maximum height: 800×2560@60Hz

AUDIO

Audio input connector

Output

RJ45 × 2
  • 2 Gigabit Ethernet outputs
  • Maximum loading capacity of a single Ethernet port: 650,000 pixels
  • Support redundancy between Ethernet ports.

Function

LIGHT SENSOR

Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment.

Connector

Connector Name

Description

Control

UART IN/OUT

Input and output ports for cascading devices

USB

Type-B USB control port for connecting to PC

Power

AC 100V-240V~50/60Hz

Indicators

RUN

Device operating indicator. Working status:

  • Flashing slowly: Video input unavailable
  • Flashing normally: Video input available
  • Flashing rapidly: The screen is displaying startup image.
  • Breathing: Ethernet port redundancy has taken effect.

STATUS

Device power indicator. Working status:

  • On: The power supply is normal.
  • Off: The power is not supplied, or the power supply is abnormal.
